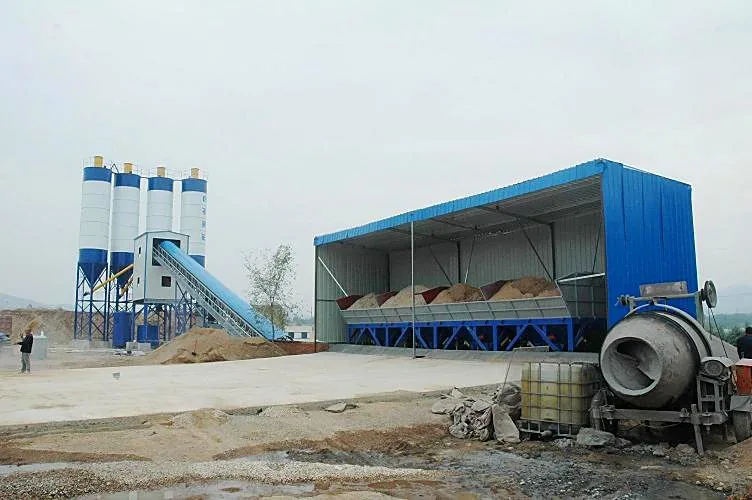

A 90 m³/h stationary plant with the JS1500 twin-shaft mixer and inclined belt feeding, plus a four-bin PLD2400 batcher. Faster, smoother aggregate feed for high-volume pours.
Standard configuration. Additional cement silos available.
| Capacity & mixing | |
|---|---|
| Theoretical productivity | 90 m³/h |
| Actual output | ≤ 90 m³/h |
| Mixer model | JS1500 twin-shaft forced |
| Main motor power | 30 kW × 2 |

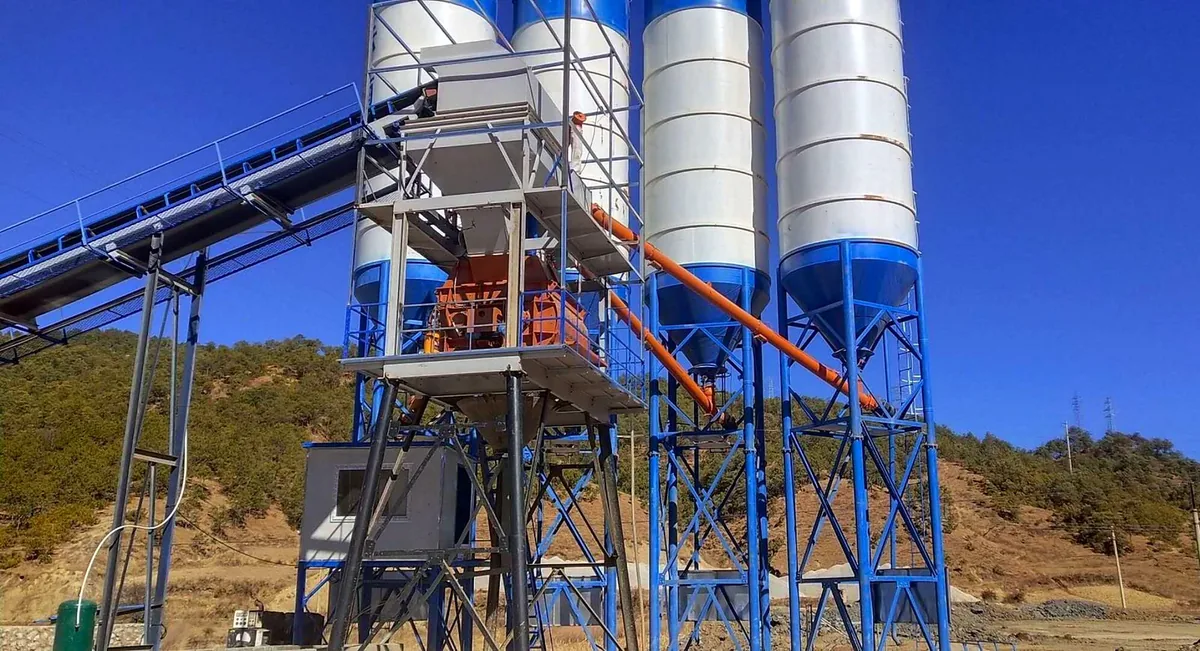

| Aggregate feeding | Inclined belt |
| Discharge height | 4 m |
| Max. aggregate size | 80 mm |
| Batching & weighing | |
|---|---|
| Batcher model | PLD2400 |
| Aggregate bins | 4 |
| Max. cement weighing | 1500 kg |
| Max. water weighing | 900 kg |
| Max. additive weighing | 100 kg |
| Max. aggregate weighing | 4000 kg |
| Powder & water | |
|---|---|
| Cement silo | 120 T × 1 · dust collector, 5 m discharge height |
| Control | |
|---|---|
| Control system | Computerised 4-scale automatic control with printer |
| Fault diagnosis | Yes |
| Recipe storage | Storable, recallable at any time |
| Noise level | Below 75 dB |
The complete standard scope — nothing left as an extra you discover later.
JS1500 mixer with 4 m discharge · planetary reducer · 30 kW × 2 motor · lubrication pump · drainage pump · hydraulic gate · wear-resistant linings and blades.
4-bin PLD2400 national-standard batcher with accurate weighing and pneumatic gate · underframe · legs · rails · railings · ladders · screw conveyor as configured.
Water weighing hopper as configured · water pump as configured · additive pump as configured · cement and fly-ash weighing hopper as configured · pneumatic system.
Computerised four-scale automatic control with printer · integrated power cabinet · meters · software · computer · dedicated internal wiring · terminals.
120 T × 1 silo with dust collector and 5 m discharge height. Additional silos available.
15 days on-site installation guidance · warehouse inspection in Islamabad before delivery · one-year warranty (electrical parts and man-made damage excluded).
HZS90 suits projects with high concrete demand and strict quality requirements.
Several buildings under construction at once, needing a steady daily supply.
Output has to keep pace with the works schedule.
Strict quality requirements and consistent mix proportions.
What you notice when the plant runs every day.
Modular design makes installation, dismantling and relocation straightforward.
Every scale has its own meter. Cement, water and liquid additive are all measured by electronic scale.
Powder is fully enclosed during conveying, weighing and discharge — no dust emission.
Fault self-diagnosis with storable recipes that can be recalled at any time.
Aggregate is sorted during discharge, removing the wait for the weighing hopper — saving 3 to 5 seconds per cycle.
Ten sensor readings are averaged as the gate closes, and gate lead is auto-corrected. Every scale has coarse and fine weighing.
Two weighing hoppers compare values against each other. Discharge only proceeds after they agree.
Enclosed discharge with an internal arc gate keeps station noise below 75 dB.
We do not publish prices, because configuration changes the figure. Send us your site details — daily output needed, power supply, extra silos — and you will receive a proper quotation.
Yes. It is in our Islamabad yard. Visit, inspect the components and watch it run — or ask for photos and a video on WhatsApp.
The concrete foundation and embedded parts, lifting equipment, cables, and the high-voltage supply to the plant's distribution cabinet. Our engineers guide installation for 15 days.
The model is already selected. Just add your details.
