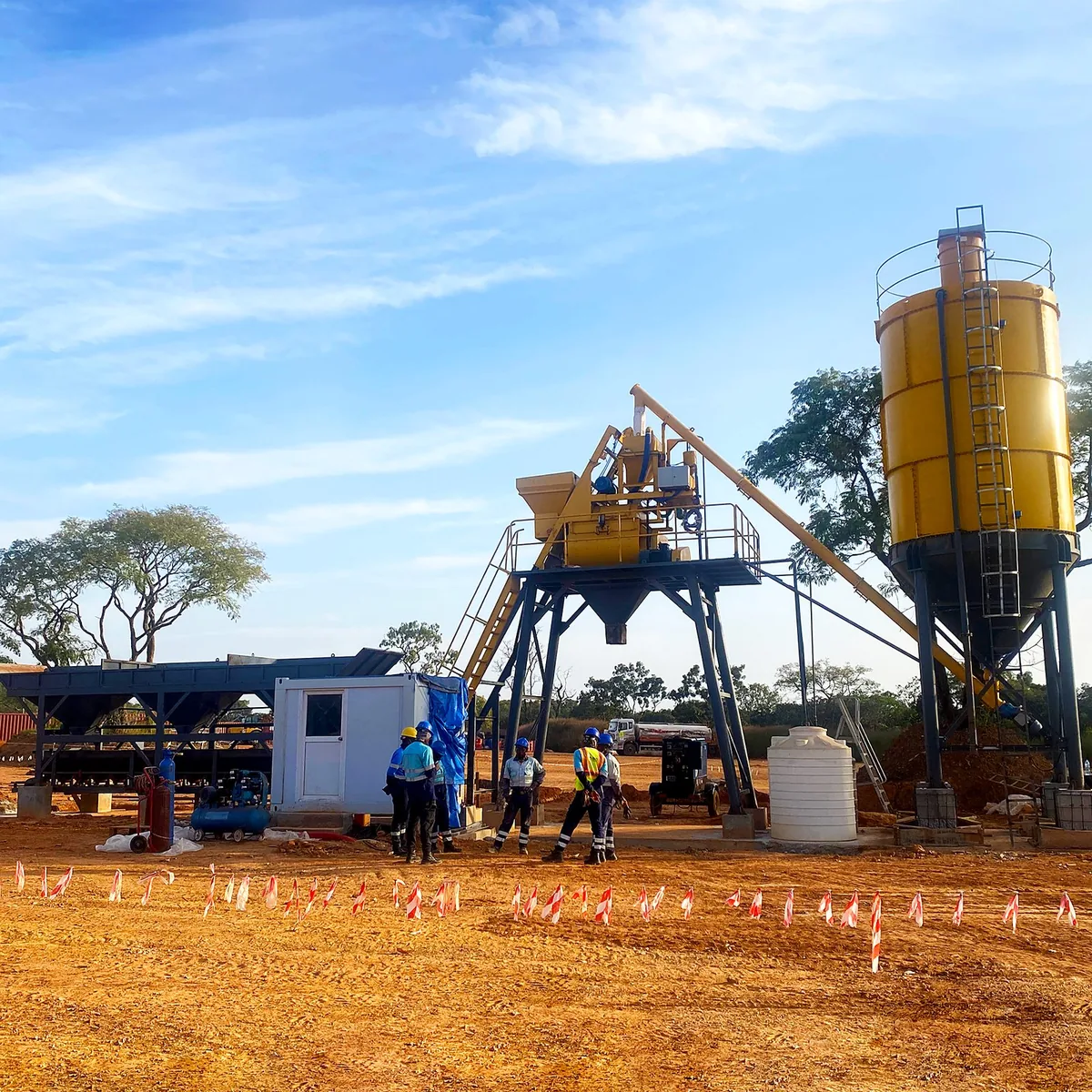

A 25 m³/h stationary plant built around the JS500 twin-shaft mixer and a three- or four-bin PLD1200 batcher. Compact footprint, fast installation.
Standard configuration. Additional cement silos available.
| Capacity & mixing | |
|---|---|
| Theoretical productivity | 25 m³/h |
| Mixer model | JS500 twin-shaft forced |
| Main motor power | 18.5 kW × 1 |
| Aggregate feeding | Skip hoist |
| Hoist motor | 5.5 kW |
| Discharge height | 4 m |
| Max. aggregate size | 60 mm |
| Batching & weighing | |
|---|---|
| Batcher model | PLD1200 |
| Aggregate bins | 3 or 4 |
| Max. cement weighing | 1500 kg |
| Max. water weighing | 900 kg |
| Max. additive weighing | 100 kg |
| Max. aggregate weighing | 3000 kg |
| Powder & water | |
|---|---|
| Cement silo | 100 T × 1 · dust collector, 5 m discharge height |
| Screw conveyor | 9 m / 11 kW |
| Water pump | 2.2 kW |
| Drainage pump | 1.1 kW |
| Additive pump | 0.55 kW |
| Air compressor | 0.6–8 |
| Control | |
|---|---|
| Control system | Computerised 4-scale automatic control with printer |
| Fault diagnosis | Yes |
| Recipe storage | Storable, recallable at any time |
| Water weighing hopper | 300 kg |
| Cement weighing hopper | 500 kg |
| Noise level | Below 75 dB |
The complete standard scope — nothing left as an extra you discover later.

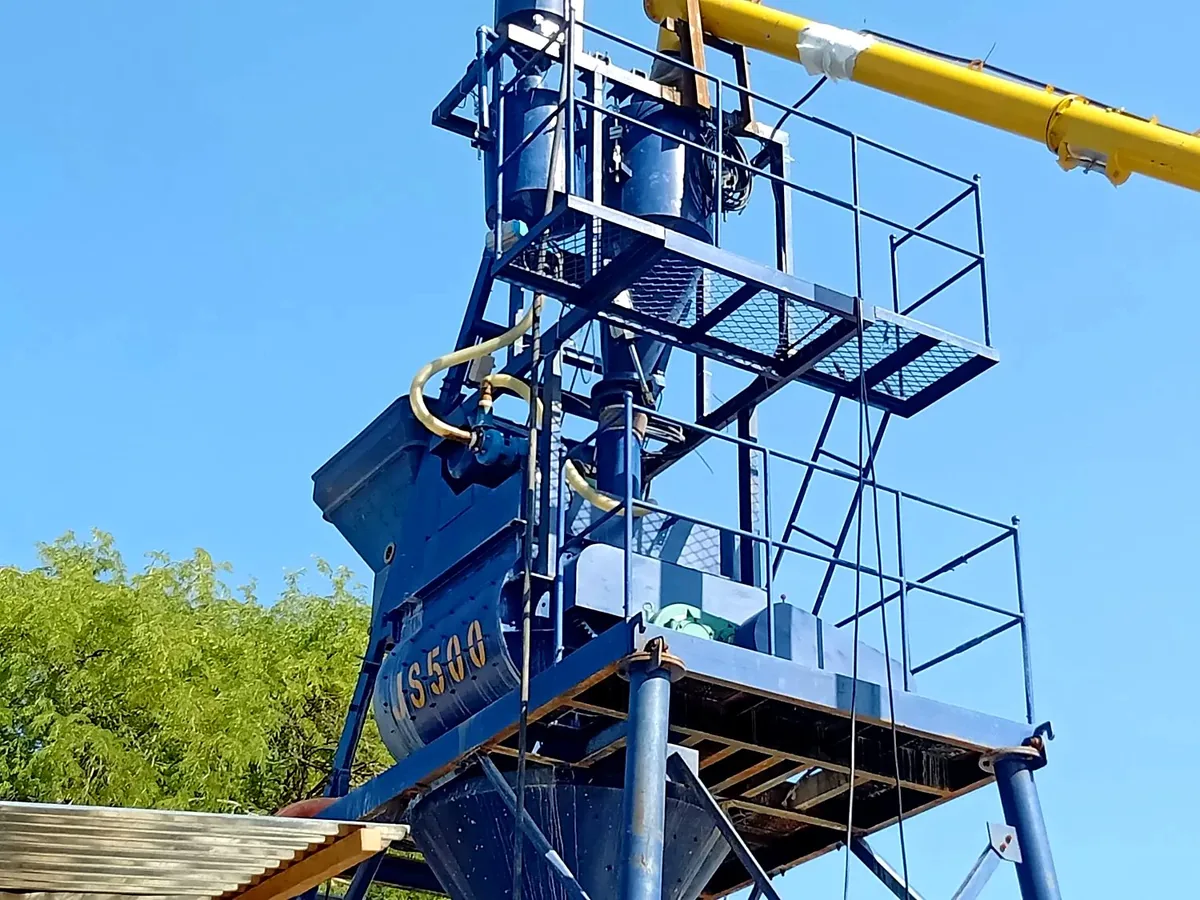

JS500 mixer with 4 m discharge · planetary reducer · 18.5 kW × 1 motor · hoist reducer and 5.5 kW hoist motor · lubrication pump · drainage pump · hydraulic gate · wear-resistant linings and blades.
3 or 4-bin PLD1200 national-standard batcher with accurate weighing and pneumatic gate · underframe · legs · rails · railings · ladders · 螺旋输送机 9 m / 11 kW.
Water weighing hopper 300 kg · water pump 2.2 kW · additive pump 0.55 kW · cement and fly-ash weighing hopper 500 kg · pneumatic system.
Computerised four-scale automatic control with printer · integrated power cabinet · meters · software · computer · dedicated internal wiring · terminals.

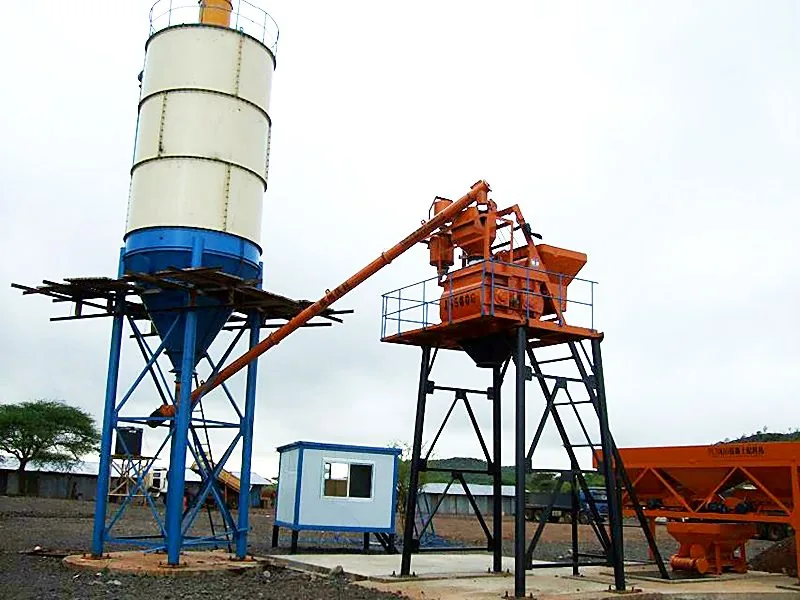

100 T × 1 silo with dust collector and 5 m discharge height. Additional silos available.
15 days on-site installation guidance · warehouse inspection in Islamabad before delivery · one-year warranty (electrical parts and man-made damage excluded).
HZS25 suits projects with high concrete demand and strict quality requirements.
Several buildings under construction at once, needing a steady daily supply.
Output has to keep pace with the works schedule.
Strict quality requirements and consistent mix proportions.
What you notice when the plant runs every day.
Modular design makes installation, dismantling and relocation straightforward.
Every scale has its own meter. Cement, water and liquid additive are all measured by electronic scale.
Powder is fully enclosed during conveying, weighing and discharge — no dust emission.
Fault self-diagnosis with storable recipes that can be recalled at any time.
We do not publish prices, because configuration changes the figure. Send us your site details — daily output needed, power supply, extra silos — and you will receive a proper quotation.
Yes. It is in our Islamabad yard. Visit, inspect the components and watch it run — or ask for photos and a video on WhatsApp.
The concrete foundation and embedded parts, lifting equipment, cables, and the high-voltage supply to the plant's distribution cabinet. Our engineers guide installation for 15 days.
The model is already selected. Just add your details.
